Description

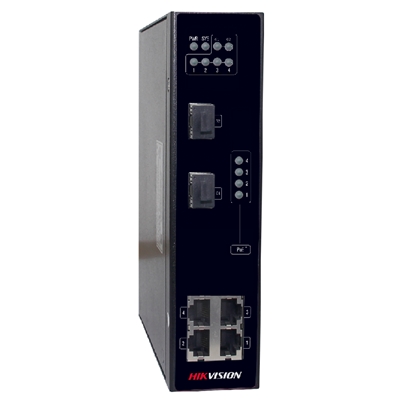

SWITCH 4P LAN 10/100M RJ45 POE + 2P GIGABIT SFP UPLINK HIKVISION DS-3T0306P 802.3AF/AT, POE POWER BUDGET 120W
Network Parameters
Port Number:
– 4 × 10/100 Mbps RJ45 ports
– 2 × gigabit fiber optical ports
MAC Address Table: 4 K
Switching Capacity: 8.8 Gbps
Packet Forwarding Rate: 3.6 Mpps
PoE Power Supply
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: 1/2 (+), 3/6 (-)
Max. Port Power: Max. 30 W for one port
General
Dimension (W × H × D): 155 × 130 × 42
Storage Temperature: -40℃-85℃
Storage Humidity: 5%-95% non-condensing
Installation Mode: DIN rail
Operating Temperature: -40℃-75℃
Operating Humidity: 5%-95% non-condensing
Power Supply: DC：44～57VDC ( Power supply unit is not included )
Power Consumption: ＜ 9 W
Protection Grade: IP40
Approval
EMI:
– FCC 47 CFR Part 15 Class A
– EN55022 Class A
EMS:
– IEC (EN )61000‐4‐2, Class 4
– IEC (EN )61000‐4‐4, Class 2
– IEC (EN )61000‐4‐5, Class 2
– IEC (EN )61000‐4‐11, Class 4
– IEC (EN )61000‐4‐12, Class 4
