Description

Xiaomi HIMO C26 Electric Bicycle 250W 48V 10Ah
Classical Electric Bike City Road Mountain Ebike
Aluminum alloy E-bike

The latest Xiaomi HIMO C26 features a light frame and 26–inch wheels. The Xiaomi HIMO C26 features a triangular frame, which makes it more durable and stable on a bad road.

Xiaomi HIMO C26 dimensions  174 × 66 × 105 cm, and the weight is 25 kg.

Also, Xiaomi HIMO C26 is made of high-quality metal and available in three colors: gray, white, and red

Also, this time Xiaomi has not made it foldable like older models of its e-bikes. So it needs more space to store or transport. However, you can adjust the height of the seat.

An ample white light with a capacity of 45 LUX is above the front wheel. Behind under the seat is another red light. Thanks to its powerful front and rear lights, the Xiaomi HIMO C26 provides safe transportation both day and night.

The main feature of the latest Xiaomi HIMO C26 is its large power reserve. It features a massive 10 Ah battery, which provides up to 100km ride on a single charge. With a battery capacity like this, you can go not only to work, to a store or cafe, but even to a neighboring city.

The Xiaomi HIMO C26 can easily accelerate to 25 km per hour and is design for a maximum weight of up to 100 kg. This means that both teenagers and adults can use bicycles.

Also, its display comes with IPX7 ratings which protect it from water and dust. On the sides, there are the front and rear brake lever.

Specification

General &Vehicle Performance

1. Brand：HIMO
2. Type：Classical Electric Bicycle
3. Model：C26
4. Color：White/ Grey/ Red

Vehicle Performance

1. Dimensions L×W×HOverall unit：1740×660×1050mm
2. After folding：No supply
3. Operating Temperature ：-10~40°C
4. Storage Temperature:-20~50°C
5. Net Weight：25 KG
6. IP Rating ：IPX5
7. Max. Speed：25km
8. Transmission ：Shimano 7 Levels
9. Electric range:about 60km
10. Assisting rang：about 100km
11. Shock-absorption :Saddle & Tyres
12. Brake :Front: Mechanical disc brake
13. Rear: Mechanical disc brake
14. Charging time:3-5 hours
15. Payload ≤100kg

Head of Bicycle

1. Material:Aluminum alloy
2. Handgrip Material:TPR
3. Type :Fixed
4. Small bell:Yes
5. Brake handle:left/Right
6. Transmission indicator:Right 7 Llevels

Front Wheel

• Drivenmethod:/
• Material:High carbon steel ring
• Size:26 inch
• Tire:Rubber pneumatic tire
• Brake:Mechanical disc brake

Rear Wheel

• Drivenmethod:Motor drive wheel
• Material:High carbon steel ring
• Size:26 inch
• Tire:Rubber pneumatic tire
• Brake:Mechanical disc brake
• Transmission system:Shimano 7 Levels

Main Frame

• Material:Aluminum alloy
• Type:Fixed triangular girder
• Parking:Parking stand
• Battery location:Built-in front girder
• Reflect Sticker:Side reflection embedded on front and rear wheels
• Max Steering Angle:60°(each side)
• Rear Tale Light:Under the saddle
• Foot Pad Material :Nylon
• Foot Pad Type:Foldable

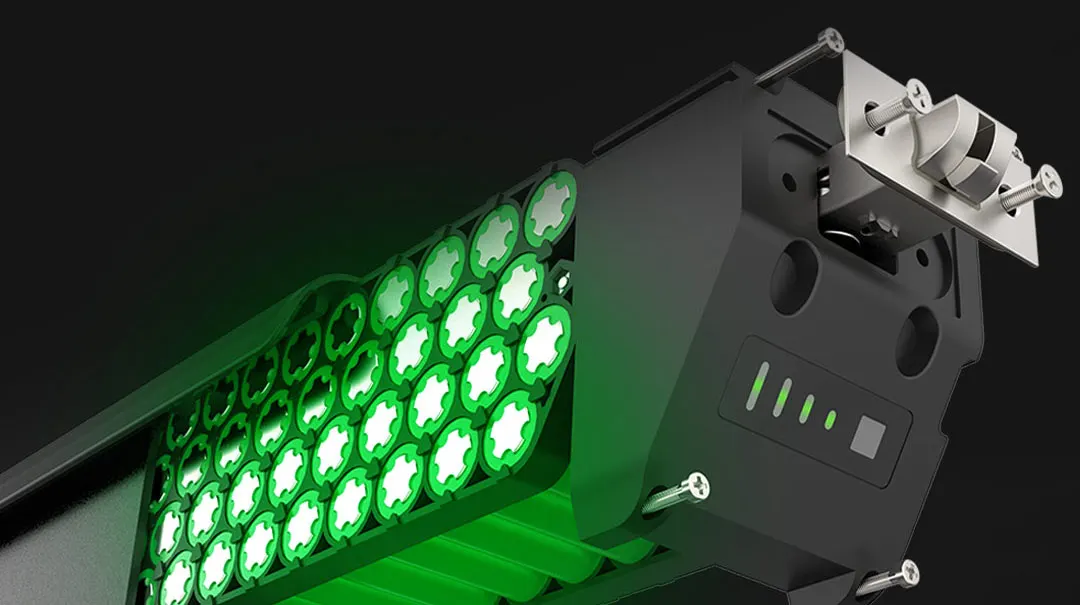

Battery

• Material:lithium battery
• Type of batteries:Removable portable charging
• Battery number: PCS
• Rated Voltage:48V
• Charge cut-off voltage:54V
• Rated Capacity:48V10Ah
• Charging Temperature:0~40°C
• Battery ManagementSystem:”Over-heating, Short circuit,
• Over- current, Over-charge protection”

Charger

• Input Voltage :100~240V, 50/60Hz
• Output Voltage:54V DC
• Output Current:2A
• Output Power:108W

Motor

• Brand:
• Motor Type:Hall Brushless DC Motor
• Rated Voltage:48V
• Rated Power:250W
• Max. Power:
• Rated speed:200 r/min

System Control

• Turn On/Off :Visible button on the speed control handle
• Riding Modes Switch:Visible button on the speed control handle
• Front Light Switch:Visible button on the speed control handle
• Display Type:HD LCD Display
• Display Contents:Speed, power, gear S display 3 gears in color
• Electronic booster starting point :Motor only engage after reachesspeed 3km/h
• Under voltage protection:41±1V
• Over current protection:15±1A
